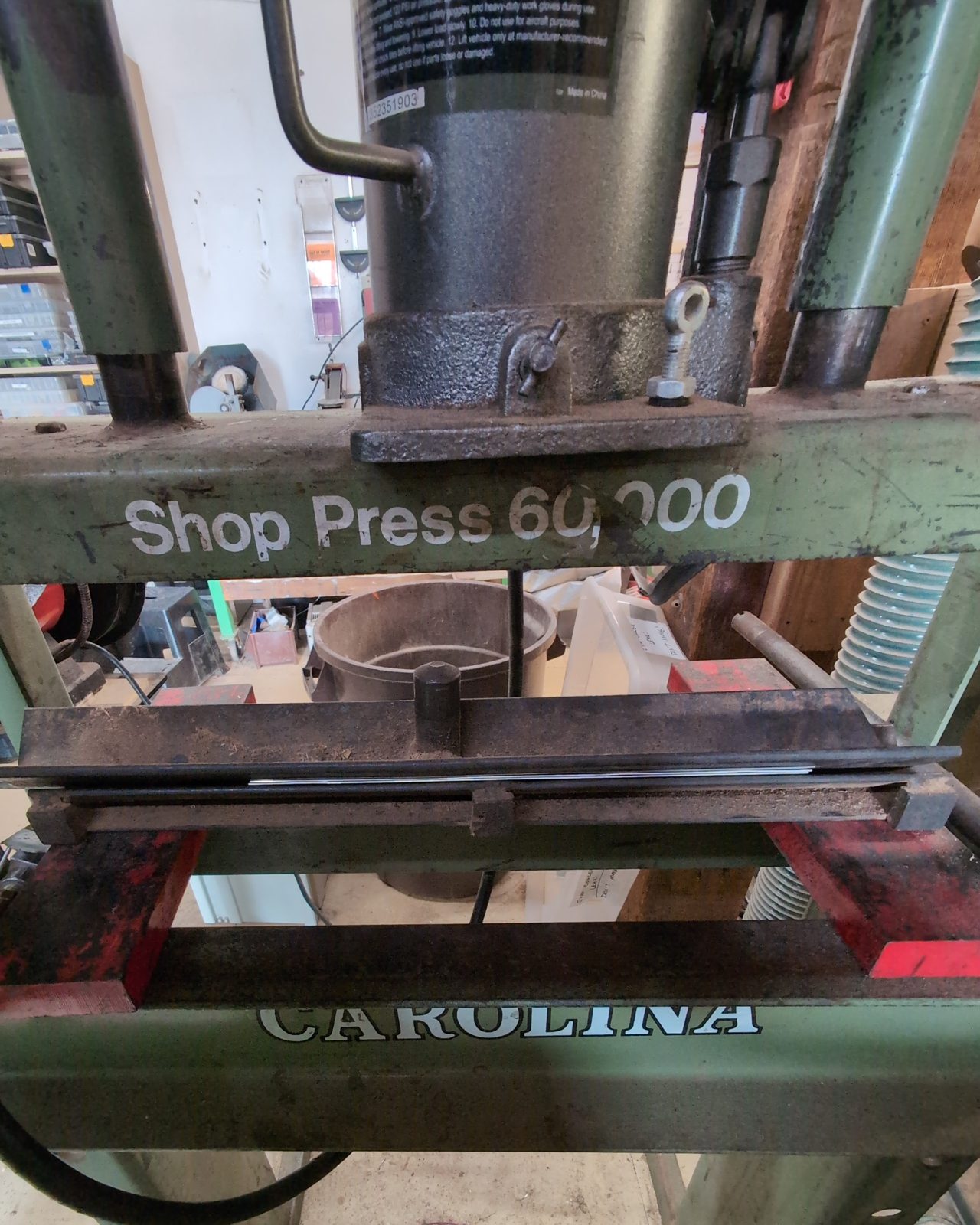

Made a radius shoe out of .032" 3003 for a 12" hydraulic brake targeting the 6.4mm bend radius called for with the thicker 6061-T6. Three layers got there, but four was too large a radius.
I'll try it on …
September 2026
5 entries
Remade the last horizontal tail shaping form. Then I coating the edges of the curved forms with several coats of a 50% cut of shellac. I read online that this was a good way to harden HDF without damaging its …
Sanded spring back allowance and flute notches into the curved horizontal tail rib shaping forms. I need to redo one of the front stabilizer rib shaping forms before I can call them all done.
Decided to wait to make …

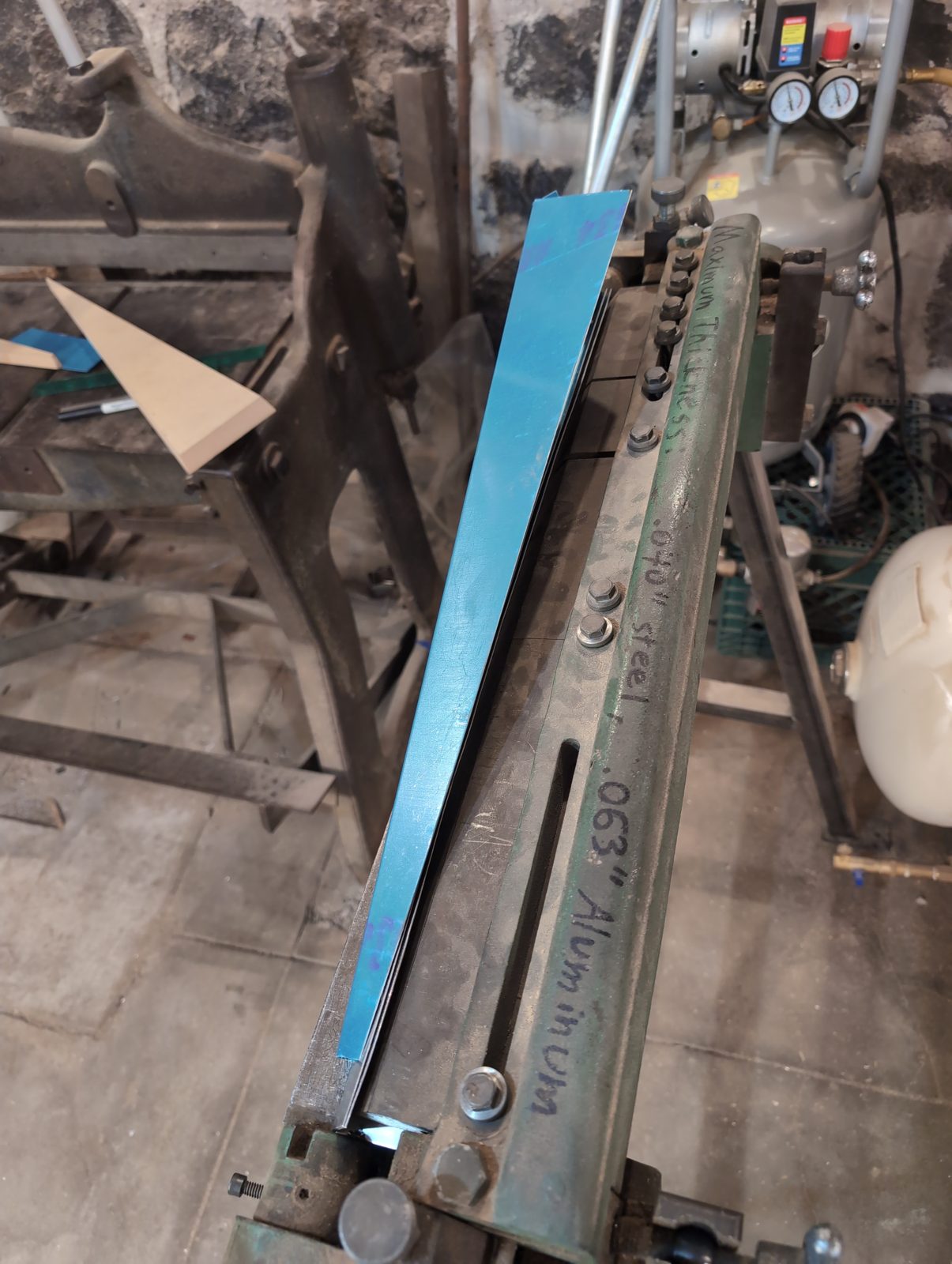

Finished forming the remaining two rudder ribs, though still need to debur edges. Also formed an elevator rear rib. Built a rigid clamp base for my 48" brake so I'll resume testing the performance of that this weekend.

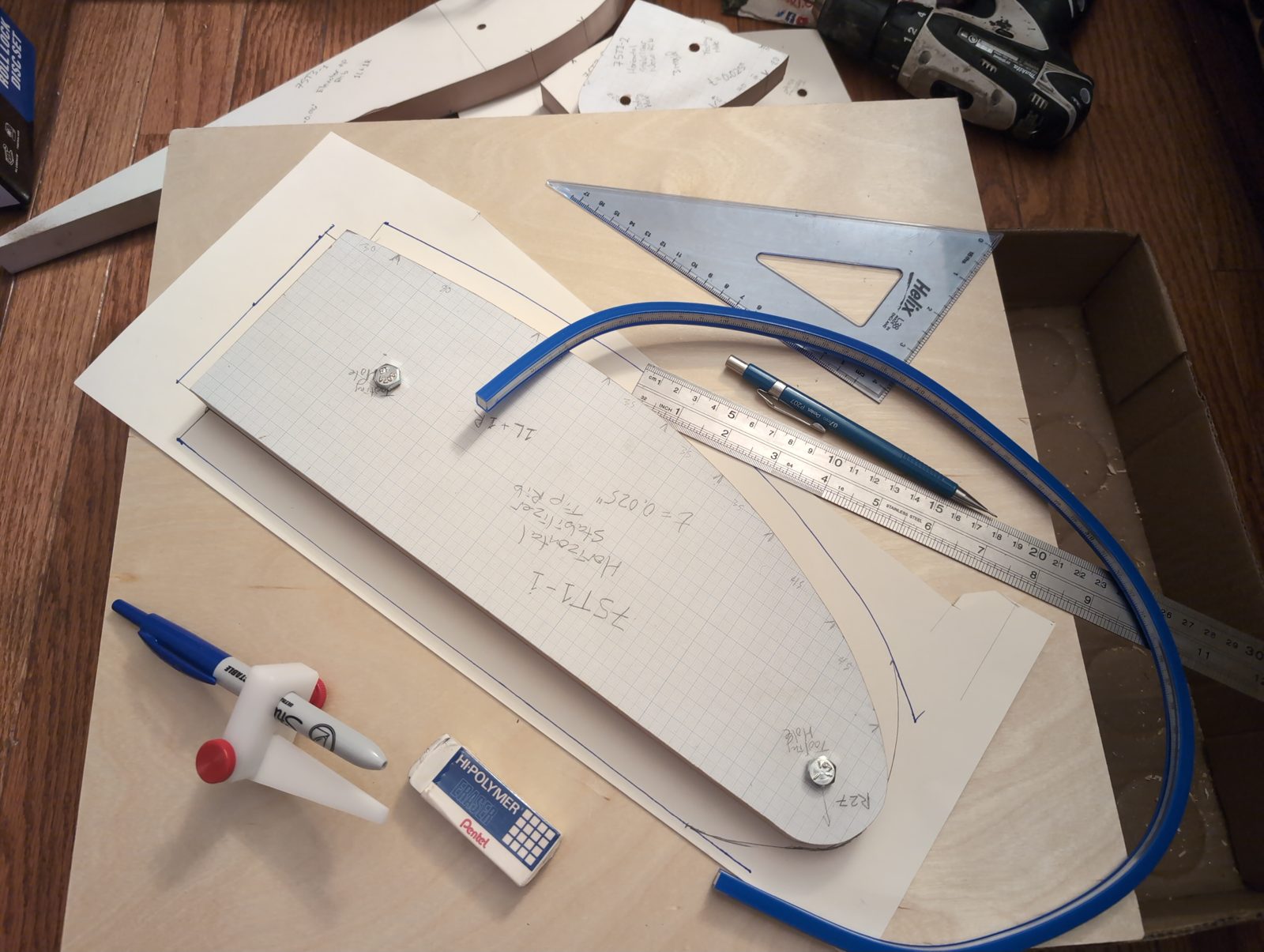

Drafted blank cutting templates then cut out the part blanks for the remaining rudder ribs.
